Setting up Tracked Medications

The Tracked Medication feature can be activated from the website under the Tracked Medication tab through Settings. When these options are enabled, it allows the NarcBox to be used to enter Non-Tagged medication usage and/or waste, and transfer Non-Tagged medications in and out.

Select the check boxes you wish to use:
  1. 'Enable medication usage tracking' - Allows access to Log Med Use
  2. 'Require medication waste tracking' - Requires a waste entry
  3. 'Track medication inventory' - Allows transferring in and out of medications

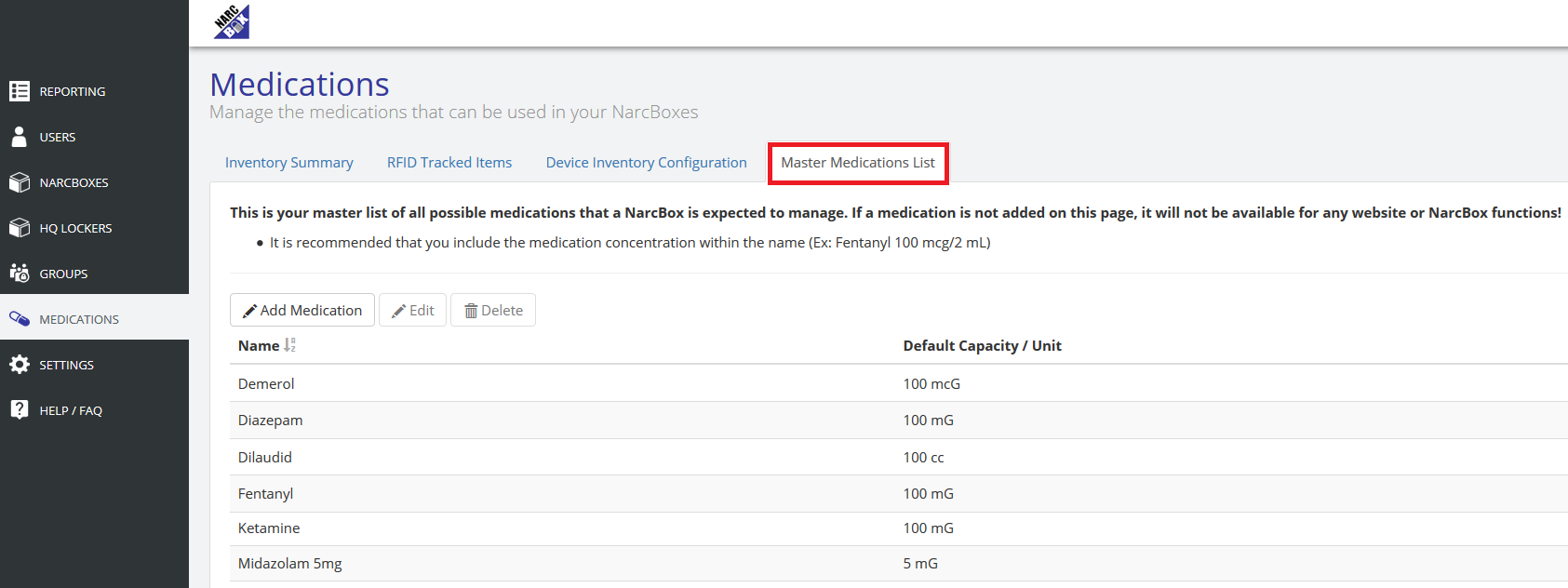

Once you have selected your settings you need to add your medications to the Master Medication List.



Once all of your medication is added to the Master Medication List you will need to set up each Devices Inventory Configuration.  This allows you to select which medications you want to allow in each device as well as set a Par and Minimum Alert Level.  When finished selecting your medications for each device make sure to press 'Save' at the bottom of the page.




Using the Log Med Use feature on the NarcBox

With medication usage tracking enabled, you will be given the option to Log Med Use.  See below for instructions on how to do this:

Log Med Use Non-Tagged Medications

  1. Press ‘Log Med Use’
  2. Enter Credential for User 1 - PIN/RFID/BIO
  3. Enter Credential for User 2 - PIN/RFID/BIO (door unlocks)
  4. Select the Medication you want to log
  5.  Select and enter 'Administered Quantity' and 'Waste Quantity', press 'Done'
  6. Double check amounts are  correct
  7. To enter another Med, press 'Next Med' and go back to step 4
  8. Done with Med entry, press ‘Done’
  9. Enter 'Run #' (optional EPCR/Dispatch/other), press 'Done'
  10. Confirm Run #, Meds and Admin/Waste Qty, press ‘Done’
  11. "Save Report?", press ‘Save’



Using the Manage Inventory feature on the NarcBox

With track medication inventory enabled, you will be given the option to transfer in or out medication with the Manage Inventory feature.  See below for instructions on how to do this:

Transfer In (Add) or Transfer Out (Remove) Non-Tagged Medications
  1. Press ‘Manage Inventory’
  2. Enter User(s) Credentials - PIN/RFID/BIO
  3. Restock:  press the + or - to adjust how many of each medication is being
    Transferred In (+) or Transferred Out (-), press '    Done'
  4. "Save Stock Changes?", press 'Save'



As with any other transaction, if there is no network connection available at the time the transaction, the NarcBox will save the report until it has a network connection.  Then it will send the event report and be posted to your account.


If you are looking to also track your medications by RFID tag number (and pouch). Check this article out: Enable/Set up Tracked Medication and Pouch
