Adding and Editing NarcBoxes

Adding and Editing NarcBoxes

Adding NarcBoxes to your NarcBox account:

  1. After you have created your account, go to the "NarcBoxes" tab

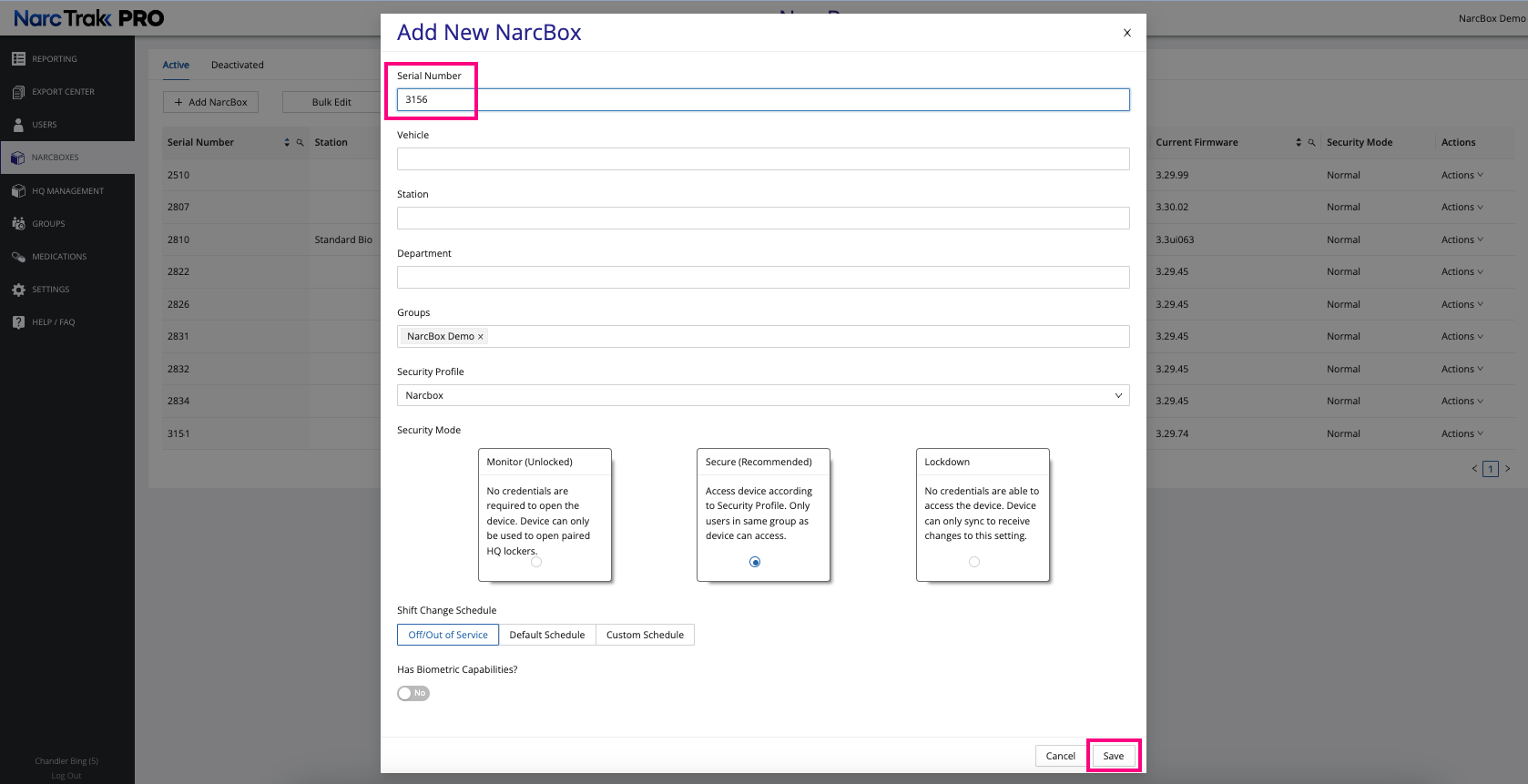

  2. Click the "Add NarcBox" button
  3. Enter the 4 digit serial number of your NarcBox (this can be found on the NarcBox. Either inside by the power ports or via the screen under Settings and NarcBox Info)
  4. On the bottom right of the pop up screen, click the "Save" button


Edit your NarcBox Info:

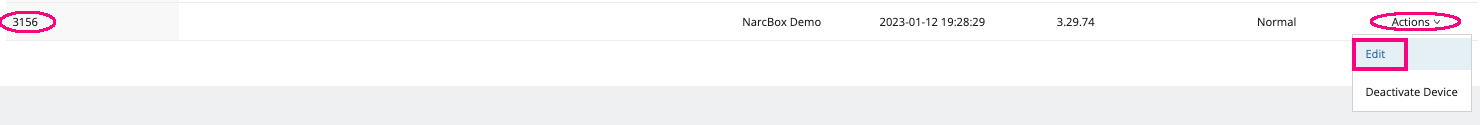

      5. Find the NarcBox you just added on your list, hover of Actions on the right hand side of its line and press "Edit".



      6. Now enter in your Vehicle, Station, Department. (all optional)
      7. Select your Security Mode.  Standard is Secure.  More info can be found here: NarcBox Security Modes
      8. Adjust your Shift Change Schedule.  Default Shift Change Schedule can be set under Settings and the Shift Change/Temperatures tab.
      9. If your NarcBox has the biometric fingerprint reader, make sure Has Biometric Capabilities? is enabled. See more information under Biometric Capabilities.
      10. On the bottom right of the pop up screen, click the "Save" button.




Once your NarcBox is connected to WiFi and a Sync occurs, the updates will be reflected on the device.
