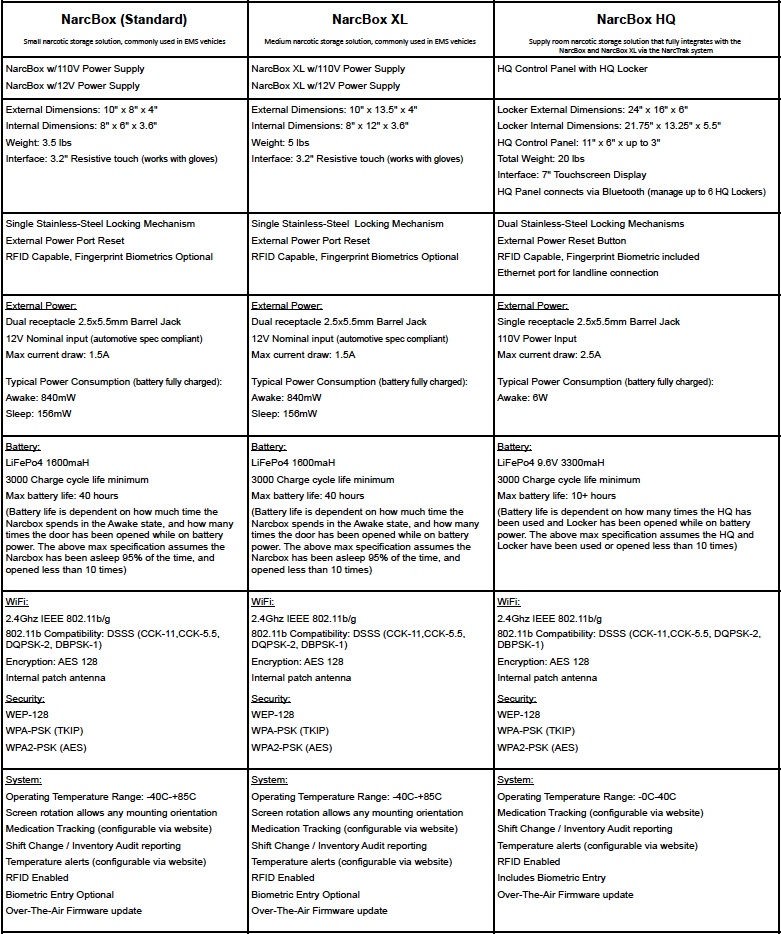

NarcBox Specifications

NarcBox Specifications

NarcBox (Standard)
NarcBox XL
NarcBox HQ
Narc Box w/110V Power Supply
Narc Box w/12V Power Supply
Narc Box XL w/110V Power Supply
Narc Box XL w/12V Power Supply
Supply room narcotic storage solution that fully integrates with the NarcBox and NarcBox XL units



External Dimensions: 10" tall x 8" wide x 4" deep
External Dimensions: 10" tall x 13.5" wide x 4"deep
External Dimensions: 24" tall x 16" wide x 6" deep
Internal Dimensions: 8" tall x 6" wide x 3.6" deep
Internal Dimensions: 8" tall x 12" wide x 3.6" deep
Internal Dimensions: 21.75" tall x 13.25" wide x 5.5" deep
Weight: 3.5lbs
Weight: 5lbs
Weight: 20lbs
Interface: 3.2" Resistive touch (works with gloves)
Interface: 3.2" Resistive touch (works with gloves)
Control Panel: 11" wide x 6" tall x max 3" deep - 7" Touchscreen Display - connects via Bluetooth to manage HQ Locker



Stainless-Steel Locking Mechanism
Stainless-Steel Locking Mechanism
Dual Stainless-Steel Locking Mechanisms
External Power Port Reset
External Power Port Reset
RFID Capable, Fingerprint Biometric included
RFID Capable, Fingerprint Biometrics Optional
RFID Capable, Fingerprint Biometrics Optional
Can connect keyboard and/or mouse via (2) usb


Ethernet port for landline connection - Also Power over Ethernet



External Power:
External Power:
External Power:
Dual receptacle 2.5 x 5.5mm Barrel Jack
Dual receptacle 2.5 x 5.5mm Barrel Jack
Dual receptacle 2.5 x 5.5mm Barrel Jack
12V Nominal input (automotive power spec compliant)
12V Nominal Input (automotive spec compliant)
110V Power Input or Power over Ethernet
Max current draw: 1.5A
Max current draw: 1.5A
Max current draw: 2.5A



Typical Power Consumption (battery fully charged):
Typical Power Consumption (battery fully charged):
Typical Power Consumption (battery fully charged):
Awake: 840mW
Awake: 840mW
Awake: 6W
Sleep: 156mW
Sleep: 156mW




Battery:
Battery:
Battery:
LiFePo4 1600maH
LiFePo4 1600maH
LiFePo4 9.6V 3300maH
3000 Charge cycle life minimum
3000 Charge cycle life minimum
3000 Charge cycle life minimum
Max Battery Life: 50 hours
Max Battery Life: 50 hours
Max Battery Life: 12+ hours
(Battery life is dependent on how much time the Narcbox spends in the Awake state, and how many times the door has been opened while on battery power. The above max specification assumes the Narcbox has been asleep 95% of the time, and opened less than 10 times)
(Battery life is dependent on how much time the Narcbox spends in the Awake state, and how many times the door has been opened while on battery power. The above max specification assumes the Narcbox has been asleep 95% of the time, and opened less than 10 times)
(Battery life is dependent on how much time the Narcbox spends in the Awake state, and how many times the Panel has been used while on battery power. The above max specification assumes the Narcbox has been asleep 95% of the time, and used less than 10 times)



WiFi:
WiFi:
WiFi:
2.4Ghz IEEE 802.11b/g
2.4Ghz IEEE 802.11b/g
2.4Ghz IEEE 802.11b/g
802.11b Compatibility: DSSS (CCK-11,CCK-5.5, DQPSK-2, DBPSK-1)
802.11b Compatibility: DSSS (CCK-11,CCK-5.5, DQPSK-2, DBPSK-1)
802.11b Compatibility: DSSS (CCK-11,CCK-5.5, DQPSK-2, DBPSK-1)
Encryption: AES 128
Encryption: AES 128
Encryption: AES 128
Internal patch antenna
Internal patch antenna
Internal patch antenna
Security:
Security:
Security:
WEP-128
WEP-128
WEP-128
WPA-PSK (TKIP)
WPA-PSK (TKIP)
WPA-PSK (TKIP)
WPA2-PSK (AES)
WPA2-PSK (AES)
WPA2-PSK (AES)



System:
System:
System:
Operating Temperature Range: -40C-+85C
Operating Temperature Range: -40C-+85C
Operating Temperature Range: 0C-40C
Screen rotation allows any mounting orientation
Screen rotation allows any mounting orientation
Medication Tracking (configurable via website)
Medication Tracking (configurable via website)
Medication Tracking (configurable via website)
Shift Change / Inventory Audit reporting
Shift Change / Inventory Audit reporting
Shift Change / Inventory Audit reporting
RFID Enabled
Temperature alerts (configurable via website)
Temperature alerts (configurable via website)
Temperature alerts (configurable via website)
RFID Enabled
RFID Enabled
Includes Biometric Entry
Biometric Optional
Biometric Optional
Over-The-Air Firmware update
Over-The-Air Firmware update
Over-The-Air Firmware update
