How do I mount the NarcBox?

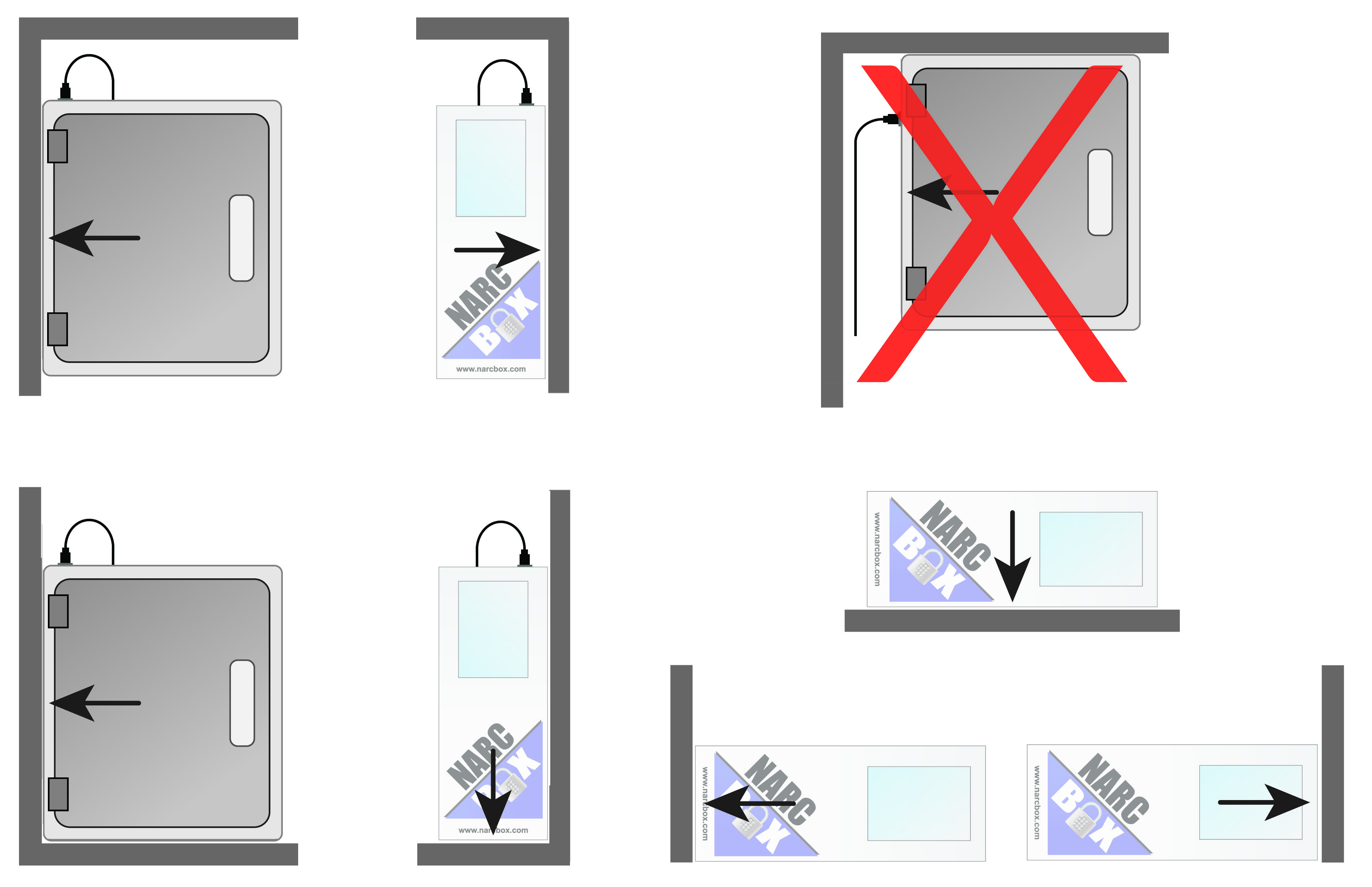

The NarcBox can be secured by drilling through any of the back or side walls (excluding the front or door).  We recommend making a template to use for all of your NarcBoxes so they have the same mounting pattern and can be easily interchanged if needed.  You may also want to use washers between the box and the wall to prevent over tightening and tweaking the frame of the box. Please also consider leaving enough space to access and remove the power cord from the NarcBox in case the power port reset needs to be used.

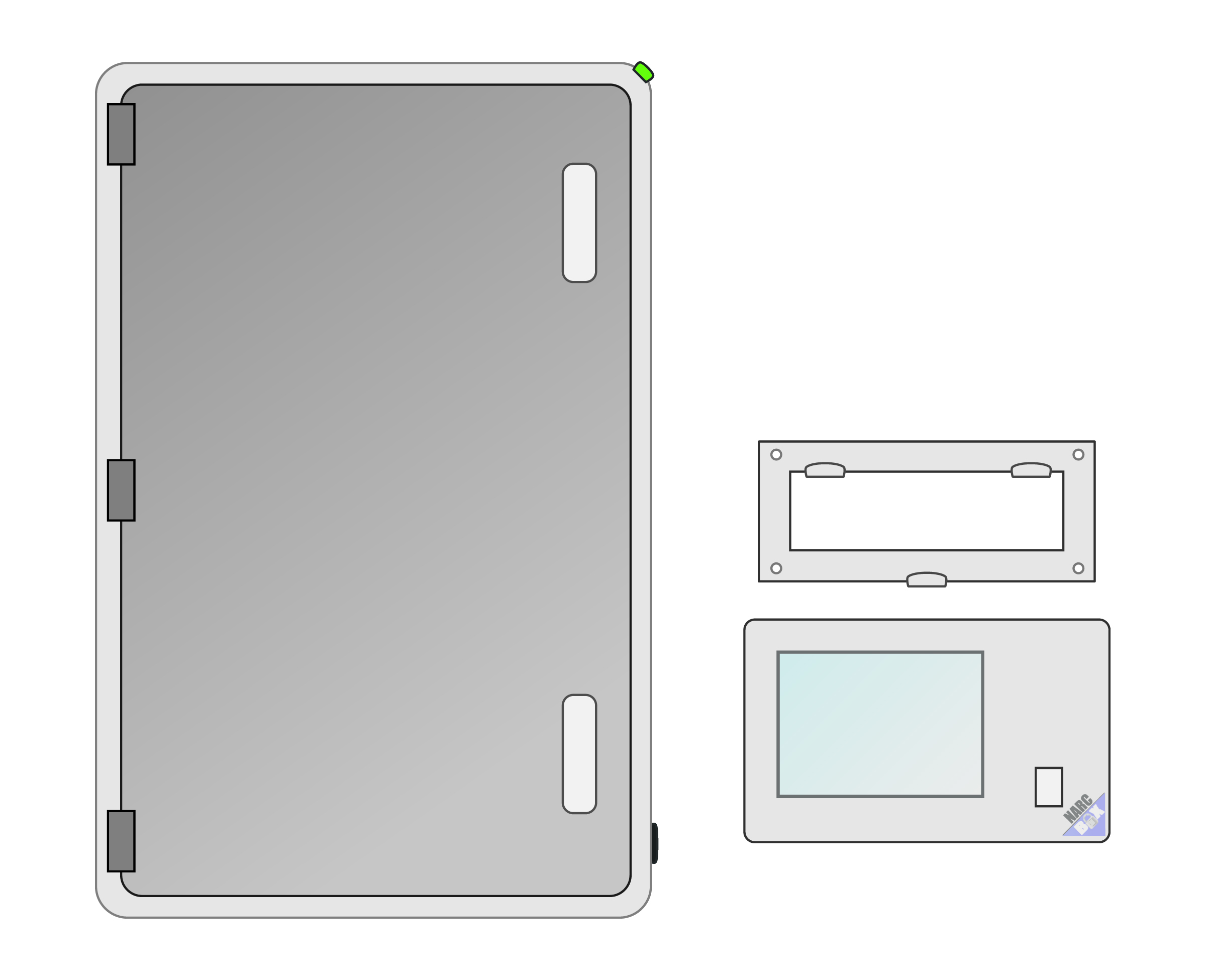

The NarcBox HQ panel has a mount provided with it to secure it to any wall.  The HQ Locker can be secured by drilling through the back of the locker.  Please make sure you are mounting the locker with the latches on the right side of the door, the light on the top right and the power port on the bottom right.
